Function, Specifications, Materials, and Key Parameters of AZ4007443020 Right Brake Caliper Assembly
1. Function
• Braking Force Application: The AZ4007443020 right brake caliper assembly converts hydraulic pressure into mechanical clamping force to slow or stop the vehicle, acting as a critical component of the disc brake system.
• Heat Management: Designed to dissipate heat generated during braking, ensuring consistent performance and preventing brake fade under high-load conditions.
• Structural Integrity: Provides a rigid mounting point for brake pads and pistons, ensuring precise alignment and efficient braking.
2. Specifications
• Part Number: AZ4007443020
• Installation Location: Right-hand side of the vehicle's disc brake system (passenger's side in most markets).
• Compatibility: Engineered for heavy-duty commercial vehicles, such as those equipped with Sinotruk HOWO or similar engine systems.
• Brake Type: Hydraulic disc brake caliper assembly.
3. Materials
• Caliper Body:
• Cast Iron or Aluminum Alloy: Cast iron offers superior strength and heat dissipation, while aluminum may be used for lighter-duty applications to reduce weight.
• Pistons:
• Steel or Phenolic Resin: Steel pistons provide durability and heat resistance, while phenolic resin pistons reduce heat transfer to the brake fluid.
• Seals and Dust Boots:
• Rubber or Elastomer: Ensures hydraulic fluid retention and prevents contaminant ingress.
4. Key Parameters
• Piston Diameter: Typically ranges from 40 mm to 60 mm (varies by application), determining the clamping force applied to the brake pads.
• Brake Pad Interface:
• Pad Area: Optimized for the vehicle's weight and braking requirements.
• Pad Retention: Features clips or pins to secure brake pads in place.
• Hydraulic Ports:
• Number and Size: Typically two ports (inlet and outlet) with standard thread sizes (e.g., M10 x 1.0) for brake line connection.
• Mounting Points:
• Bolt Pattern: Designed to fit specific vehicle mounting brackets (e.g., 4-bolt or 6-bolt patterns).
• Weight: Approximately 5–15 kg (varies by material and design).
• Operating Temperature Range: -40°C to +150°C (or -40°F to +302°F), ensuring reliability in extreme conditions.
Additional Notes
• Maintenance: Requires periodic inspection of seals, pistons, and brake pads for wear or damage.
• Replacement: Should be replaced with OEM or equivalent parts to ensure proper braking performance and safety.
• Compliance: Meets or exceeds industry standards for braking systems (e.g., SAE, DIN, or ISO).
The AZ4007443020 right brake caliper assembly is engineered for durability, efficiency, and safety, making it a critical component in heavy-duty commercial vehicle braking systems.
Product Tags:
|
|

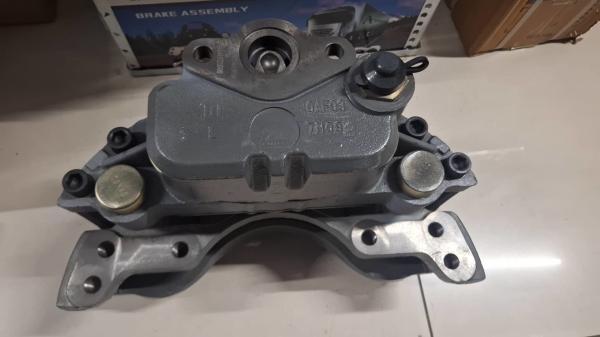

AZ4007443020 VGD71 / VGD9.5 Caliper Assembly Images
|
